TBK 638 Welding Soldering Vacuum Fume Extractor Smoke Absorber Machine Optional
TBK 638 Welding Soldering Vacuum Fume Extractor Smoke Absorber Machine Optional
Recommended to use with TBK-958A TBK 958B TBK958C TBK958M TBK 958Z Laser Engraving and Back Glass Removing Machines
Main Features:
* Harmful fume or gas is always generated when welding or soldering for repairing the PCBA, the machine can absorb the harmful smoke, fume or gas effectively.
* Optionally and very suitable working with TBK-958A/958B/958C laser marking machines
* 360 degree bending direction adjustment
* 108cm flexible long pipe, no need external force
Product details:
* Model: TBK-638 A/B/C
* Switching AC inlet: 110V/60Hz~220V/50Hz
* Power handling: 150W
* Product size: 180*180*110 mm
* Package size: 240*300*540 mm
* Main material: Metal box and plastic tube
* Product net weight: 3.2 kgs
* Package weight: 4.0 kgs
* Same main device with 3 kinds of tubes
TBK-638 A, B & C differences:
* TBK-638 A is with BLACK tube, its absorbing "mouth" is wide, and the connection end is mounted by outter 4-screws;
* TBK-638 B is with BLACK tube, its absorbing "mouth" is wide round with light, and the connection end is also mounted by outter 4-screws;

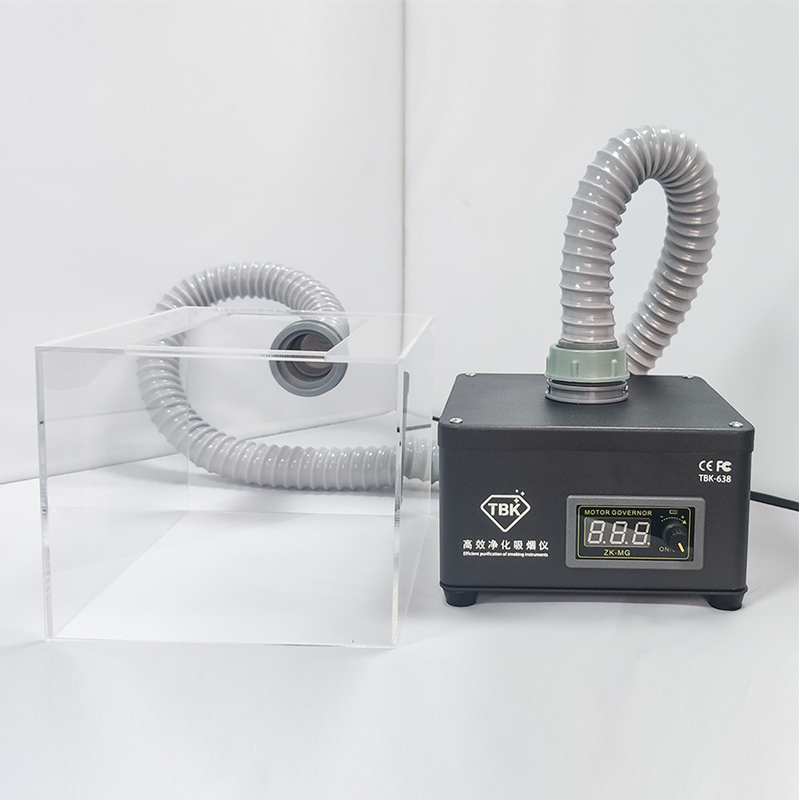

* TBK-638 C is with GREY tube, its absorbing "mouth" is with a light transparent box (by L23*W18*H15 cm), and the connection end is directly mounted by inner screw-threads.
